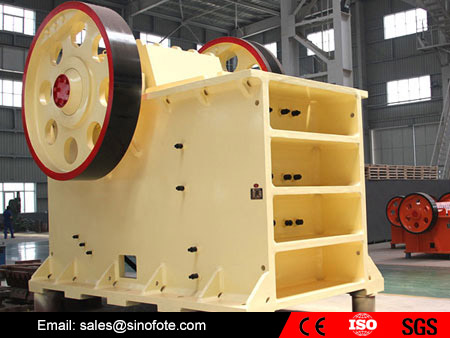

Structure of the jaw crusher

Tweet

The structure of jaw crusher is very simple and mainly made up of six parts. These six parts own the advantages of their own, but they cooperate with each other to complete the crushing job of the crusher. This article will introduce these six parts to you one by one. 1. Body frame. The jaw crusher has two kinds of body frames: the whole frame and the composite frame. Generally, the whole frame is overall cast by the casting and the composite frame is used for large-scaled jaw crusher. The body frame of large-scaled needs to be cast in subsection, then link them as a whole by using the screw. Its casting technology is complex. 2. Jaw plate and side guard plate. Both the fixed jaw and the moving jaw is made up of the jaw bed and the jaw plate. Jaw plate is a part of the work. The front wall of the frame needs enough strength and hardness to bear the crushing force. Therefore, most of them are steel cast or iron cast. 3. Driving medium. Eccentric shaft is the main shaft of the crusher and is manufactured by the high-carbon steel. The eccentric part needs finish machining and heat treatment. One end of the eccentric shaft is equipped with belt wheel, and another with flywheel. 4. Adjustment device. The scale board of the crusher is worn by the ore continuously in the working process, which makes the breadth of the material discharge mouth gets bigger. To guarantee the granularity requirement of the production, we need to adjust the breadth of the material discharge mouth timely. The adjustment device usually uses the wedge type, in which the bevels of the two wedges fit backward, and the screw rod makes the back wedge move up and down to adjust the size of the material outlet. 5. Safety device. When big objects such as the machine parts, iron enter into the crushing cavity or when the crushing cavity is blocked by materials, the load of jaw crusher will exceeds the rated load and the stress of the machine rises sharply. Therefore, we need to set the safety device to avoid accidental damage of the crusher. 6. Lubricating system. Lubricate the friction parts of the crusher by thin oil or dry oil. The centralized circulation lubrication for the bearings of the eccentric shaft and the pitman coupling uses the thin oil pressed by the gear pump. Press some dry oil into the supporting pad of the moving jaw and the scale board by hand. Jaw crusher: http://stonecrusher.sinofote.com/
